Standard nozzles are used effectively in a variety of water treatment systems. They are economical, easily installed, and have several distinct design advantages:

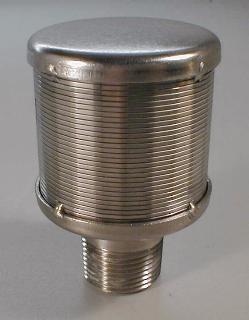

Screen Services Nozzle

  • Type 316L stainless steel construction.
  • Continuous slot design provides increased open area for better collection.
  • Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available.
  • Wedge wire screen is highly resistant to plugging.
  • Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
  • Less expensive than other screen of equal efficiency.

Nozzle Drawing

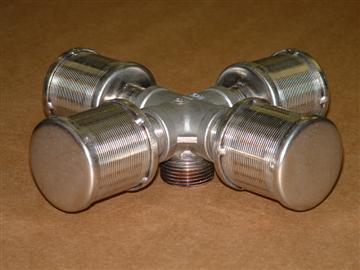

Small systems may be built modularly from off-the-shelf components requiring minimal customization.

Screen Services Nozzle

For more information, please download our Collectors (298K) brochure (Adobe Acrobat format).
